Series: Group Calf Housing

Reduce stress and potential health problems during transitional period

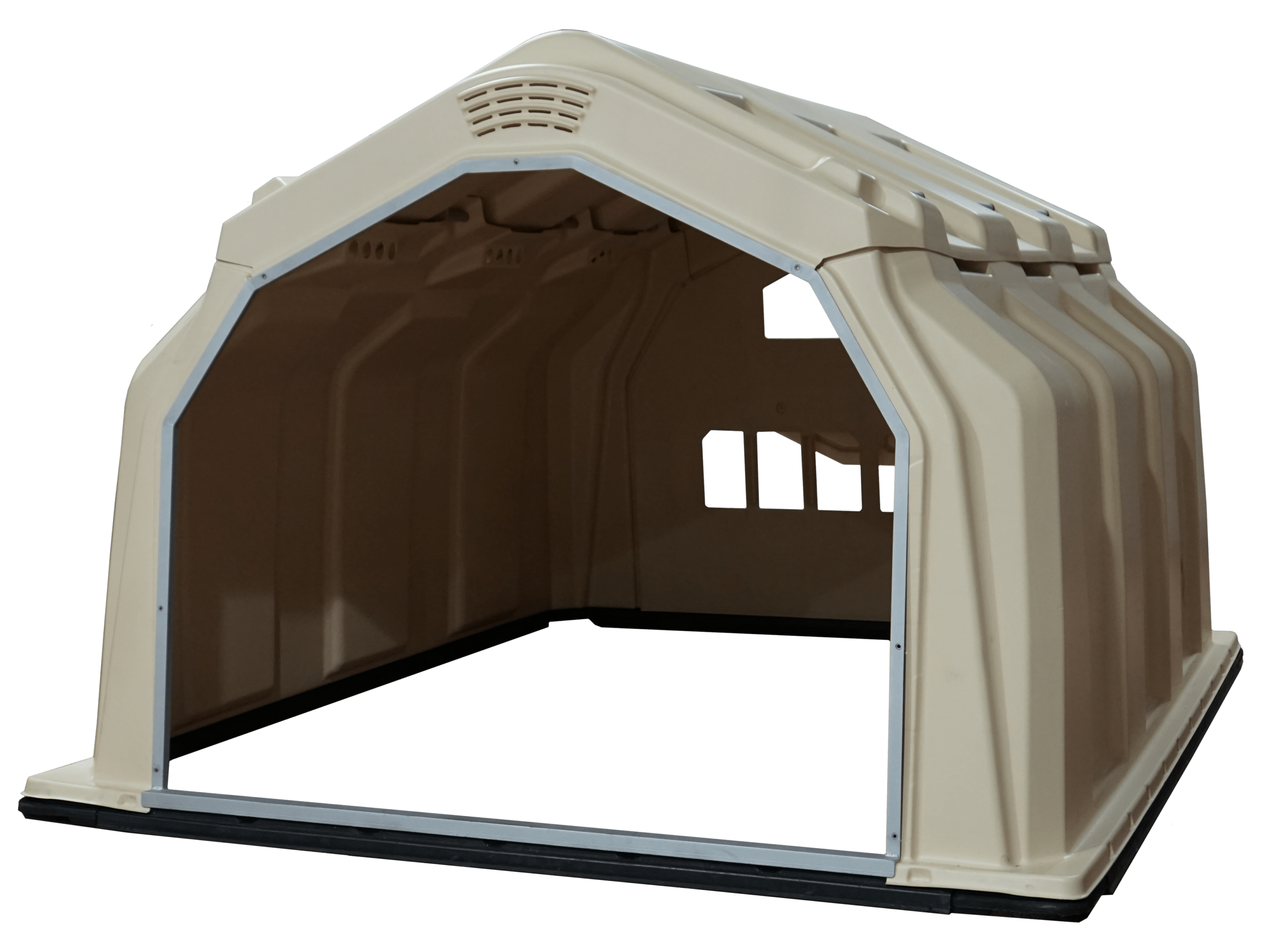

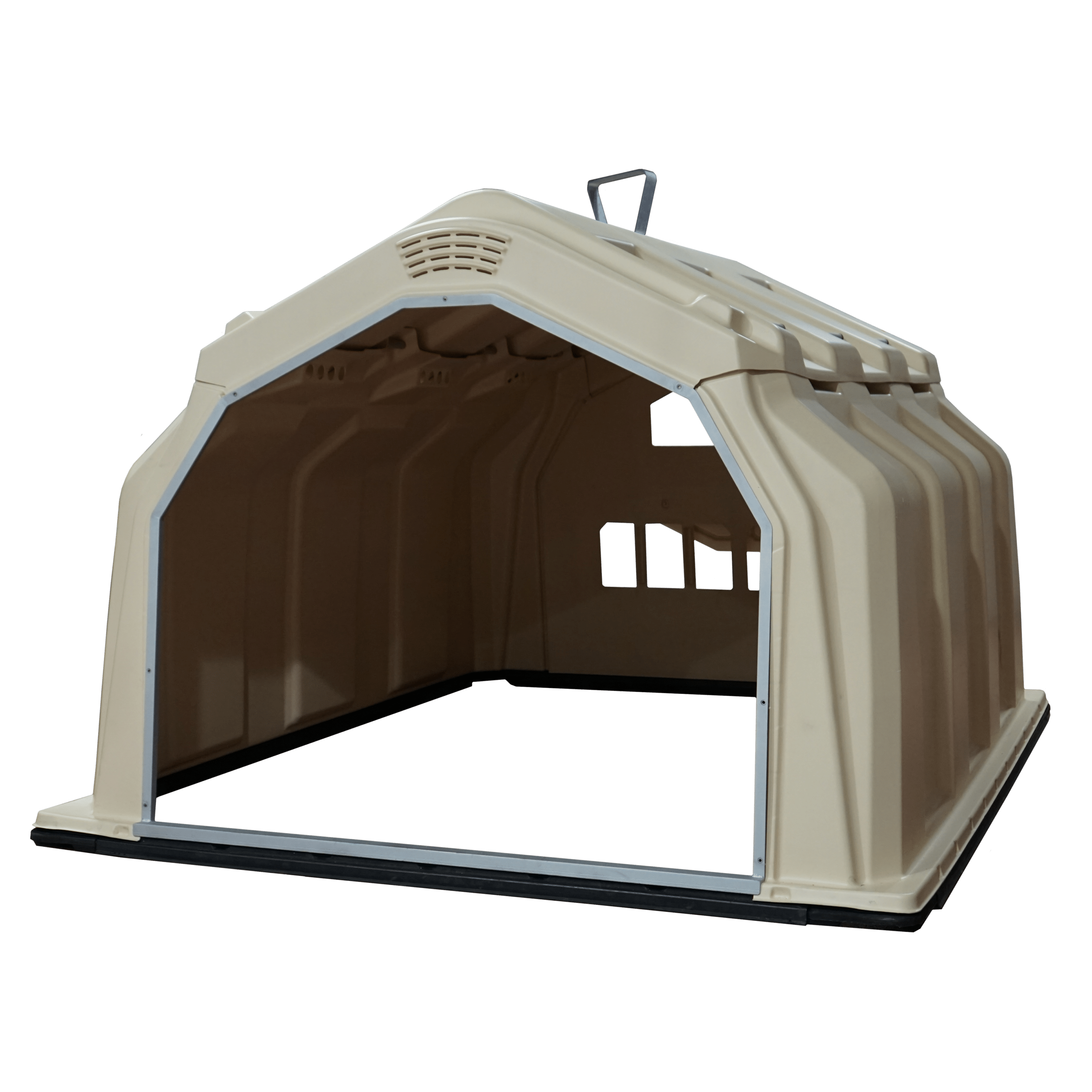

Calf-Tel Mammoth

Group Calf Housing

Calf-Tel Mammoth

Go BIG. Go Mammoth.

Home » Group Calf Housing

The Calf-Tel Mammoth is the largest calf housing unit we have ever produced.

In the world of dairy farming, the future is built on the strength of our calves. At Calf-Tel, we think bigger and have designed the Mammoth with the producer and herd’s success in mind. It is designed specifically to meet the demands of producers looking to raise calves in smaller groups or to meet transitional housing needs for post-weaned calves prior to moving to larger herds. It provides a generous 10-square-meter footprint with enhanced airflow and is built with high molecular weight polyethylene for unmatched durability.

  • 4 main structural components for easy assembly
  • Minimal hardware required
  • Streamlined ventilation ports provide additional airflow
  • Additional ventilation on rear bottom doors

AVAILABLE SPRING 2025

Mammoth Space

  • 2.1 meters tall
  • 3 meters in width
  • 3.5 meters in length
  • An impressive 10 square meters in total footprint

Mammoth Construction

  • Built from high molecular weight polyethylene giving it the durability and strength of other Calf-Tel products you know.
  • Built to last, the Mammoth is nearly indestructible.
Shop Accessories
View Mammoth Product Information Sheet
Calf-Tel Studio

Specifications

Dimensions
Outside137.8″ L x 118.1″ W x 82.7″ H
350 cm x 300 cm x 210 cm
Inside Usable Calf Space129.92″ L x 106.3″ W x 82.7″ H
329.9 cm x 269.9 cm x 210cm
Weight400 lbs.
181.4 kg.

Features & Benefits

Improved Base

New and improved base with beveled edge for easy transportation – No wood!

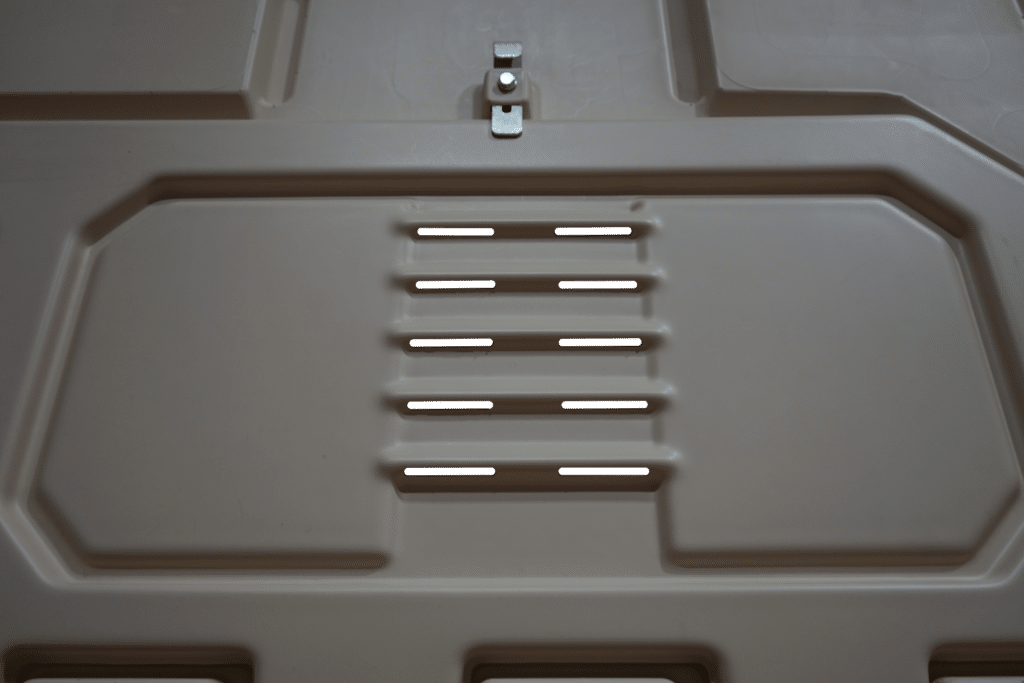

Bottom Door Ventilation

When closed—the bottom door is system-integrated with additional ventilation when weather is foul, or temperatures drop.

Rear and Side Openings

Provide ventilation for continuous airflow.

Rear Openings

Provide multiple options for bedding techniques and automated bedding equipment.

Raising the Standard in Calf Housing.
For the future of your herd: Go Big. Go Mammoth

NEW Group Yard System

Calf Fences

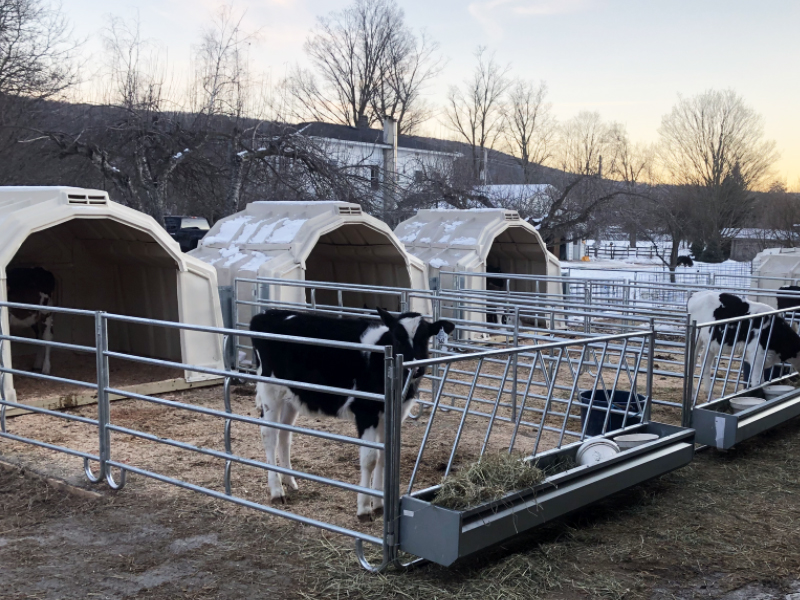

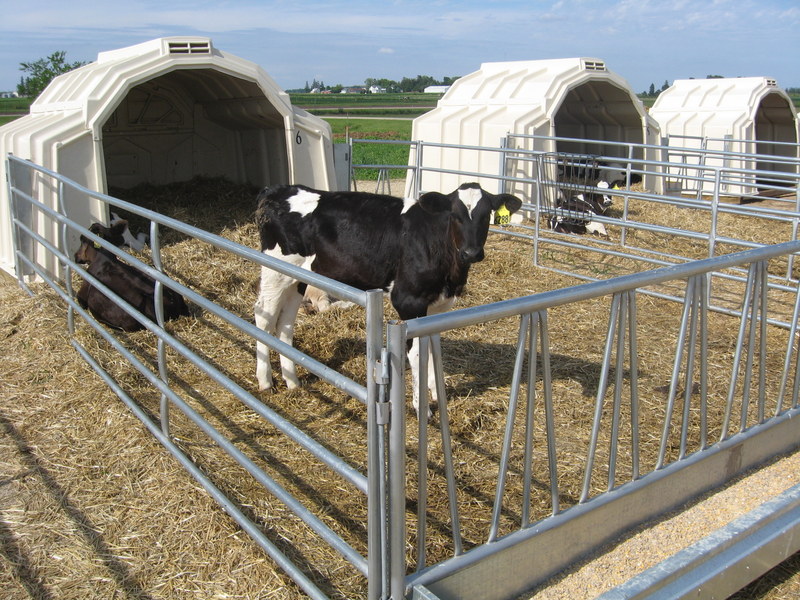

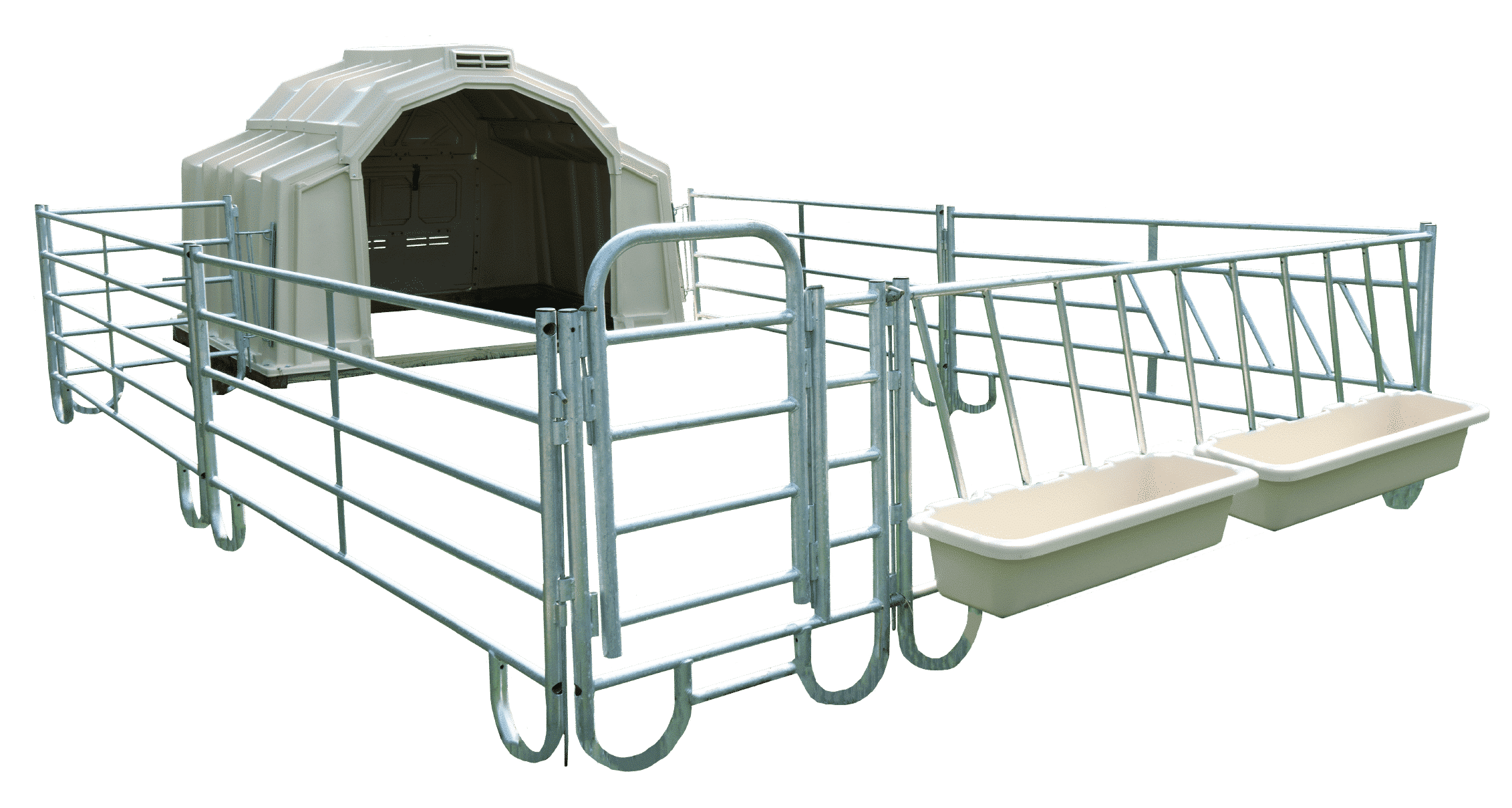

Group Yard System

Home » Group Calf Housing
A heavy-duty, infinitely modular, durable fencing solution that provides extra space for calves.

Still available in the 8|16 & 12|16 configuration options, the Group yard is our NEW fencing option that attaches to our 54|98 MultiMax Hutch and can hold 4-7 calves in the smaller option and up to 8 calves in the larger option. With the ALL NEW ThruTube fabrication, you can now add as many panels as you want using the ThruTube Extender Links to reinforce strength at the intersection making it INFINITELY MODULAR.

  • Fits 54|98 Calf-Tel Group Housing calf hutch
  • Side panels and front are Inside/Out, hot-dip galvanized steel
  • Optional Plastic Feed Trough with 16-gallon capacity is virtually indestructible and easier to clean than steel
  • All corners simply pin together for fast disassembly when moving or cleaning
  • Optional front swing gate for easy access to herd

For pricing, availability and lead times contact your Territory Manager.

View Product Information PDF
Product Customizer
Shop Accessories

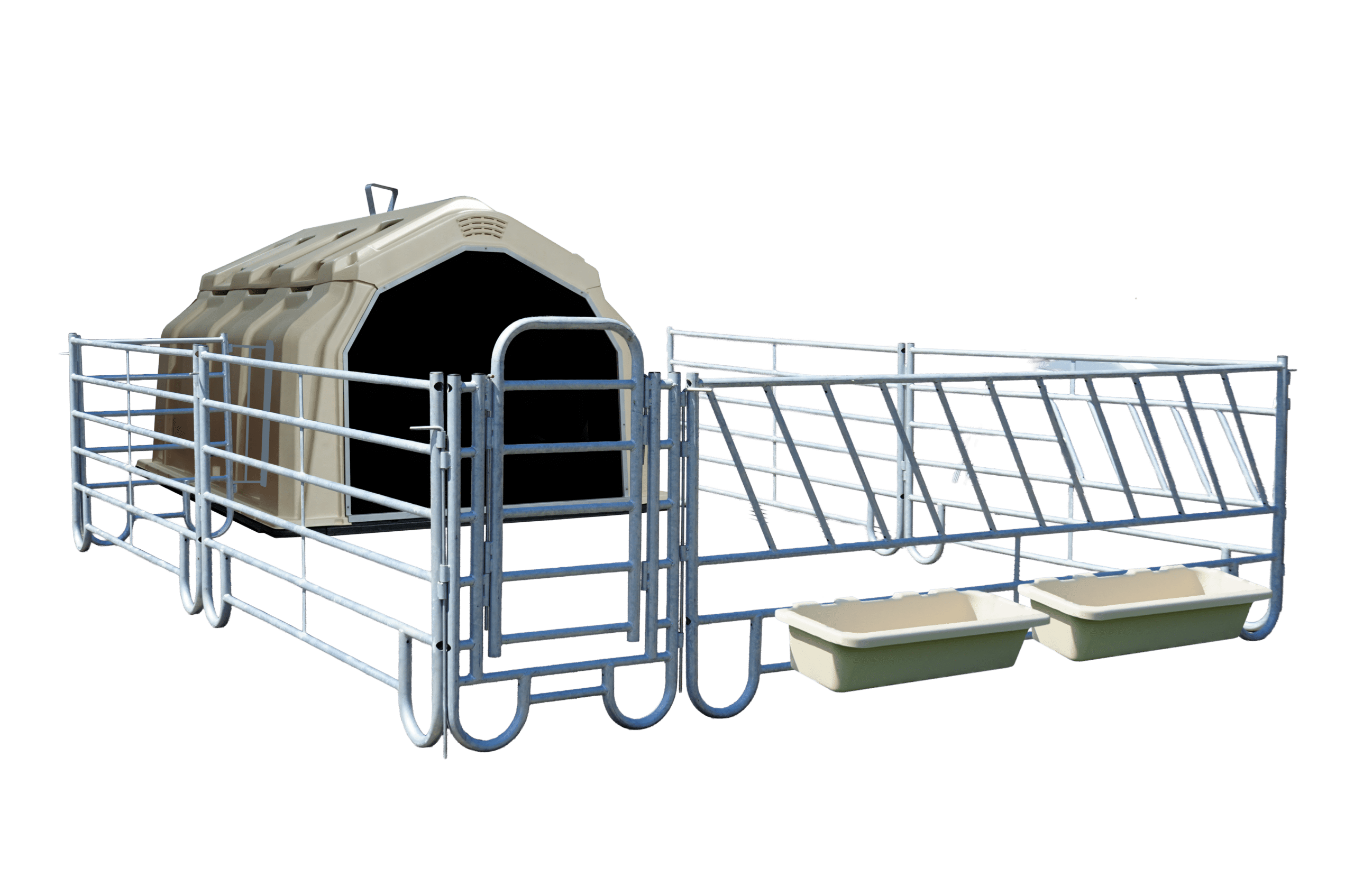

8|16 Sample Configuration Specifications

Dimensions
Length192″
489cm
Width107.6″
273cm
Height43″
109cm
Weight152lbs
69kg

12|16 Sample Configuration Specifications

Dimensions
Length192″
489cm
Width142.6″
361cm
Height43″
109cm
Weight197lbs
89kgs

Features & Benefits

L-rod Hinge Pin

Side panels connect with simple L-rod hinge pin.

ThruTube Fabrication

Our ThruTube Fabrication method leverages the combined strength of two tubes, as one complete system — maximizing material strength with a mechanical, cantilevered connection of tubes COMBINED with a weld for even more strength. The result is unparalleled compressive rigidity that will stand up to the rigors of everyday use.

Easy Access to the Herd

Front swing gate for producer to easily access the herd available as add on

Universal Hutch Connector Piece

Easy to install, Universal Hutch Connector Piece

Inside Out Hot-Dip Galvanization

A superior method for protecting steel from corrosion and ensuring its longevity both inside and outside the tubing

Customizable Front Options

Regular slanted front or V-Trainer front options available.

Heavy Duty Plastic Trough

Virtually indestructible 16 Gallon Plastic Troughs

ThruTube Extender Link

Reinforce strength at the intersection making it customizable to your needs. Using the Extender Link you can add as many panels as you like and still maintain rigidity at the connection point.

Side Panel Options

Regular side panel vs. side waterer panel that allows you to attach a Hampel Heavy Duty Plastic Trough.

Head Lock Attachment

Optional head lock attachment.

Duplex Gate System

Group Calf Housing

Duplex Gate System

Easier Transition to Group

Home » Group Calf Housing
For Newborn Calves Up to 100 Days

Bolster your herd’s overall health and growth by easing the transition from individual calf housing to a group environment. Our Outdoor Group Calf Hutch combined with the Duplex Gate System allows you to pair raise first, then shift to a small group. Suitable for 2 calves with the middle pairing gate, or up to 3 without the middle pairing gate.

  • Fits Calf-Tel Outdoor Group Calf Hutch
  • Removable middle pairing gate for increased calf interaction
  • Optional plastic divider to reduce the spread of sickness or disease
  • Fits four direct attach pails and two bottles/holders
  • Secure levers — Easy enough to open with one hand
  • Doors open inward and outward for easy access

Calf Hutch & Pen Cleaning Guide

View Duplex Gate System Product Information PDF
Shop Accessories
Product Customizer

Specifications

Dimensions
Inside Size With Middle Pairing Gate 2.7 Meters
Inside Size Without Middle Pairing Gate5.4 Meters
Inside Usable Calf Space
With Middle Pairing Gate (1 Side)		208x 122 x 180 cm
82″ x 48″ x 71″
Inside Useable Calf Space
Without Middle Pairing Gate		208 x 259 x 180 cm
82″ x 102″ x 71″
Weight – Gate System76.5 lbs / 34.7 kg

Features & Benefits

Optional Plastic Divider

To reduce the spread of sickness and disease.

Customizable with Calf-Tel Accessories

Front gate fits Direct Attach Pails and Chute Style Bottle Holders.

Secure Levers

Easy enough to open with just one hand.

Doors Open Inward and Outward

Allowing easier access to calves.

Outdoor Group Calf Hutch

Group Calf Housing

Outdoor Group Calf Hutch

Easier Transition to Group

Home » Group Calf Housing
Creating a manageable, easier transition to group environment.

When calves raised individually are placed in large groups, the stress from competition and social pressure can lead to setbacks in growth and health. Placing 4 to 6 similarly sized, weaned calves in a Outdoor Group Calf Hutch is the best way to ease the transition. Continued growth and health will be attained as animals bond into a social group.

  • NEW! Rear bedding door
  • Constructed of high-molecular-weight polyethylene plastic that will not breakdown and deteriorate
  • Large entryway for maximum ventilation
  • Extra hutch height allow animals to stay in the unit longer
  • Treated lumber base provides a stable and secure foundation
  • Ridge top ventilation for improved air circulation

Compatible C-Series Fencing Options

View Outdoor Group Calf Hutch
Product Information PDF
Shop Accessories
Product Customizer

Specifications

Dimensions
Outside86.5″ L x 107.5″ W x 72″ H
220cm x 273cm x 183cm
Inside Usable Calf Space82″ L x 102″ W x 71″ H
208cm x 259cm x 180cm
Weight235 lbs.
107 kg.

Features & Benefits

Large Bedding Door

Provides producers with a convenient source for blowing in fresh bedding without interfering with animals in the front.

Large Entry

Optimizes airflow for an ideal microenvironment and minimizes the potential for problems and injury while calves enter and exit.

Treated Lumber Base

Resistant to moisture, UV rays and rot, the treated lumber base is both strong and extremely durable.

Optional Vent

Improves airflow for ventilation and better observation, reducing stress during this sensitive time.

Indoor Group Calf Pen

Indoor Calf Pens

Indoor Group Calf Pen

Home » Group Calf Housing
Group housing in a snap.

Once calves reach a certain phase they are ready to be moved into group housing. However, the transition isn’t always black and white. Recognizing this, we worked with our customers to help them phase their calves into the group with a solution that’s both innovative and easy as one, two, three!

Shop Accessories
Product Customizer

Specifications

DimensionsLengthHeightWeight
22 | 64 (6′ Pen)6 ft6 ft14 lbs.
26 | 74 (7′ Pen)7 ft6 ft14 lbs.

Features & Benefits

Easy Connection

Steel cable easily connects to the bottom of the arch completing the loop.

Customized Fit

Customized fit between front and rear panels using L-rod connector.

Solid Single Structure

Once inserted, this arch creates a solid, single structure, preventing panels from pushing out.

Barn Windmill

Locate your nearest Calf-Tel dealer

Our dealers understand the complexities of raising cattle and can help identify the best, most cost-effective solution for your operation.

Find a Dealer
